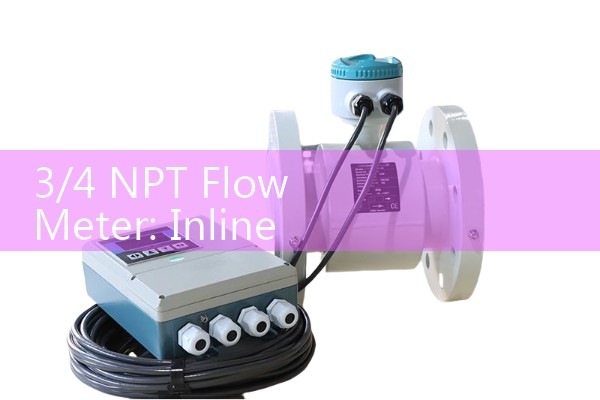

3/4 NPT Flow Meter: Inline Three-Quarter Inch Steel Fluid System Valves
Quick Answer: A 3/4 NPT flow meter with an inline steel body suits small process lines, fuel skids, chemical dosing, and hydraulic test rigs. Depending on the meter type, liquid flow ranges run from about 0.2 to 40 L/min. Send your fluid, pressure, temperature, pipe size, and flow range to Silver Automation Instruments for a direct model and price.
Many engineers search for a 3/4 NPT flow meter because the pipe thread already exists on a steel manifold or fluid system valve assembly. The thread size is not the hard part. The hard part is matching the meter type to the actual fluid and minimum flow.
Silver Automation Instruments supplies inline three-quarter inch steel fluid system meters with NPT threads, local display, pulse output, and 4-20 mA HART options. Wetted parts can be 304 steel, 316L steel, PTFE, or tungsten carbide.
What 3/4 NPT Means in a Flow Meter
3/4 NPT is a tapered pipe thread per ANSI/ASME B1.20.1. Nominal pipe size is three-quarter inch, which is DN20 in metric terms. The male thread outside diameter is about 26.7 mm. The thread seals on the flanks with PTFE tape or paste. An inline meter sits directly in the pipe run. It is not a clamp-on sensor.
Do not confuse 3/4 NPT with 3/4 BSP. They look similar but the thread pitch and angle are different. A 3/4 BSP fitting will not seal correctly on a 3/4 NPT thread. State the thread standard when you send an RFQ.
Meter Types for a 3/4 NPT Steel Fluid System
Oval gear flow meters suit diesel, paint, solvents, and oil. A 316L oval gear meter with 3/4 NPT ports can measure 0.5 to 25 L/min. At 30 cP fuel oil, accuracy can be about ±0.5% of reading. At 200 cP paint, check pressure drop because the meter may drop 0.3 to 0.6 bar at 15 L/min.
Electromagnetic flow meters suit conductive water, wastewater, and dosing chemicals. A DN15 or DN20 mag meter with 3/4 NPT adapters reads 0.2 to 40 L/min. Conductivity must be above 5 µS/cm. The liner can be PTFE for acid and caustic dosing.
Turbine flow meters are a lower-cost option for clean fuel and low viscosity oil. A 3/4 NPT turbine meter can read 3 to 40 L/min with ±1.0% of reading. Avoid solids and high viscosity because the rotor slows and accuracy shifts.
Coriolis mass flow meters are a strong choice for mass flow in kg/h, density, and temperature. A DN15 or DN20 Coriolis sensor with 3/4 NPT adapters reads mass flow in kg/h. Mass accuracy can reach ±0.1% of reading. This meter works on non-conductive liquids and viscous oil.
For air or nitrogen, a thermal mass flow meter or vortex flow meter may fit better. Steel body 3/4 NPT vortex meters can read compressed air or steam in small lines. Send gas type, pressure in bar, and temperature to get a suitable range.
Flow Ranges and Real Accuracy
Here is the thing. Pipe diameter alone is a weak sizing rule. A 3/4 NPT pipe may carry 0.3 L/min at idle and 35 L/min at full load. The meter must cover the minimum flow. Otherwise the output stays at zero during low flow and the batch controller misses volume.
For example, a 3/4 NPT oval gear meter in a diesel transfer skid covers 0.5 to 25 L/min. If the same line needs 40 L/min, a turbine or electromagnetic meter may be a better fit. Coriolis meters are specified in kg/h because mass flow changes with density.
Where These Meters Work
This size appears often in oil and gas, water and wastewater, chemical dosing, food and beverage, and marine service. A 3/4 NPT flow meter gives enough capacity for many small process tasks without paying for a large DN50 meter.
We have supplied these meters to customers in Vietnam, Indonesia, Peru, the UAE, and Australia. One case was a water treatment contract
Installation and Failure Points
Installation affects accuracy more than the meter itself. Oval gear, electromagnetic, and Coriolis meters need less straight run in small lines. Turbine and vortex meters need straight pipe before and after the meter.
Use thread sealant that matches the fluid. PTFE tape is fine for oil and water. For oxygen service or aggressive chemicals, choose a compatible paste and clean the threads before assembly. Do not overtighten a stainless steel NPT thread into a plastic or brass body.
Install a filter or strainer upstream if the fluid contains particles. A 100 mesh strainer works for most fuel and water lines. For wastewater with solids, use an electromagnetic meter without moving parts.
Check the body rating. A standard 316L meter body with PTFE sealing may handle 40 bar at 120 °C. High-pressure hydraulic systems at 200 bar need a special steel body. State the maximum pressure when you request a quote.
How to Specify a 3/4 NPT Flow Meter
Most RFQs lack two data points: minimum flow and maximum flow. Do not size a meter by pipe diameter alone. Send fluid name, viscosity in cP, conductivity in µS/cm, pressure in bar, temperature in °C, pipe size DN, full flow range in L/min or kg/h, and output signal to Silver Automation Instruments.
For a diesel transfer skid, the typical answer is a 316L oval gear meter with 3/4 NPT ports, pulse output, and a local batch display. For an acid or caustic dosing line, the better answer is often a PTFE-lined electromagnetic meter with 3/4 NPT steel ends.
Pricing depends on the meter type, body material, liner, output, and certifications. We can quote in USD or EUR. Contact Silver Automation Instruments at Tel +86-135-1213-1526, WhatsApp 86-135-12131526, or WeChat +86 13512131526.
FAQ: 5 Key Questions on 3/4 NPT Flow Meters
What is the typical flow range for a 3/4 NPT liquid flow meter? It depends on the meter type. An oval gear meter often covers 0.5 to 25 L/min. An electromagnetic meter covers 0.2 to 40 L/min. A turbine meter covers about 3 to 40 L/min.
Can I use a 3/4 NPT meter for hot water or steam? Yes. The body and liner must handle the temperature and pressure. A 316L steel body with PTFE liner works for many hot water lines up to 120 °C. For steam, use a vortex flow meter with a steel body and a rating that matches your steam line.
Do I need a straight run before the meter? It depends on the meter type. Oval gear, electromagnetic, and Coriolis meters do not need long straight pipe sections in most small lines. Turbine and vortex meters need straight pipe before and after the meter.
What is the difference between 3/4 NPT and 3/4 BSP? They are different thread standards. NPT is tapered and common in the US and many international skid designs. BSP can be parallel or tapered and is common in Australia and some UK-influenced projects. A 3/4 BSP fitting will not seal correctly on a 3/4 NPT thread.
What output signal should I choose for a 3/4 NPT flow meter? That depends on the control system. A pulse output works for batching with a PLC or batch controller. A 4-20 mA HART output works for process control and DCS integration. Some meters accept both outputs.
Need a price for a 3/4 NPT flow meter? Send us your fluid name, pressure in bar, temperature in °C, pipe size DN, flow range, and signal requirement. Contact Silver Automation Instruments by Tel +86-135-1213-1526, WhatsApp 86-135-12131526, or WeChat +86 13512131526. We will reply with a model recommendation and quotation.
