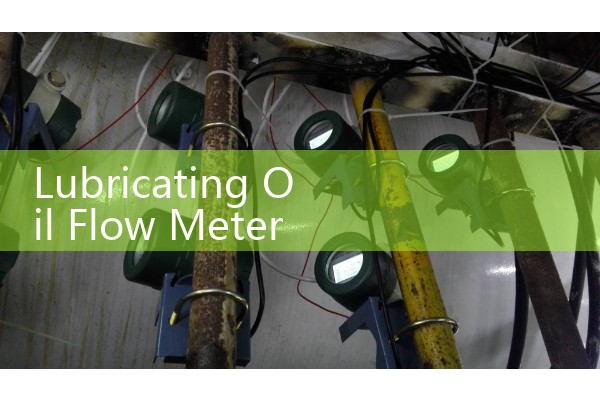

Lubricating Oil Flow Meter DN200 Bulk Inventory Transfer Layouts
Quick Answer: For DN200 lubricating oil bulk transfer, we recommend an oval gear positive displacement flow meter or a Coriolis mass flow meter. These meters handle viscosity up to 1000 cP, deliver accuracy of ±0.2% to ±0.5%, and output pulse and 4-20 mA HART for inventory management systems. Silver Automation Instruments supplies both types with ATEX and IECEx certifications for safe or hazardous areas.
Why Positive Displacement and Coriolis Meters Work Best
Lubricating oil changes viscosity with temperature. A turbine meter drifts when viscosity crosses 10 cP. In practice, base oil at 40°C often sits around 80 to 250 cSt. That is far too thick for a turbine or vortex meter. Oval gear meters are volume positive displacement devices, so they ignore viscosity shifts. A Coriolis meter measures mass directly and also handles viscous, non-conductive fluids. On DN200 lines where flow rates range between 20 and 200 m³/h, these two technologies give repeatable batch totals.
DN200 Installation Layout for Bulk Oil Transfer
Bulk inventory transfer often happens between storage tanks, tanker trucks, or railcars. The meter sits in a horizontal pipe with a dedicated strainer upstream. Most engineers skip this part, but air and gas pockets cause the biggest measurement errors with positive displacement meters. We have seen this on customer sites many times. Install an air eliminator or back-pressure valve downstream of the meter to keep the line full. For DN200 pipes, a straight run of 5D upstream and 2D downstream works fine because oval gear meters do not need long flow conditioning.
Here is the thing: if the oil has entrained air, a Coriolis meter will report mass flow accurately anyway. That is a big advantage for tank truck loading where splashing is common. So the layout changes depending on which meter type you pick.
Silver OGM-DN200 Oval Gear Flow Meter Example
We manufacture the OGM-DN200 series specifically for oils and fuels. This meter body is cast iron or stainless steel, with PPS gears and tungsten carbide bearings. It handles working pressure up to 40 bar and temperature from -20°C to 150°C. The pulse output (10 to 1000 pulses per litre) feeds directly into a PLC or batch controller. Last year a lubricant blending plant in Malaysia ordered two OGM-DN200 meters for base oil tank farm transfers. They needed ATEX Zone 1 certification because the transfer pumps sat in a Classified area. The meters were equipped with Ex d pulse preamps and a remote totalizer display.
Coriolis Mass Flow Meter for Lubricating Oil Batching
If you need mass total instead of volume, our Silver CMF-DN200 Coriolis meter is the direct choice. It measures kg/h and density simultaneously, so you detect batch errors caused by temperature shifts. The sensor has no moving parts, which reduces maintenance on dirty oil lines. A food grade lubricant producer in Vietnam switched from a turbine meter to the CMF-DN200 because the turbine bearings kept failing after 6 months. The CMF-DN200 runs 24/7 with no bearing wear. It outputs Modbus RTU, 4-20 mA HART, a
Key Parameters to Configure Your DN200 Meter
When you request a quote, prepare these numbers. Pipe size DN200 (8 inch) is just the start. Tell us the flow range in m³/h or L/min, viscosity at operating temperature, process temperature and pressure, and the required output signal. Most inventory systems accept an active pulse or a 4-20 mA signal with HART. Specify if you need local indication, a blind transmitter, or a remote display. We also ask if the area classification is safe area or Zone 1 / Zone 2 (ATEX/IECEx). For custody transfer applications, mention OIML R117 or MID certifications.
Common Bulk Inventory Transfer Layouts
A typical layout includes a strainer, the flow meter, a non-return valve, and a shut-off valve. For filling tankers, add a loading arm and an overfill protection sensor. The batch controller (e.g., our Silver Batch Controller BC200) receives the meter pulse and controls a solenoid valve or pump. In plant settings, PLCs often read the meter directly via Modbus. One layout point we see missed: install a pressure gauge before and after the meter to monitor filter clogging on the strainer. A clogged strainer causes cavitation, which destroys gear meters.
Why Choose Silver Automation Instruments
We ship DN200 flow meters to Southeast Asia, Oceania, the Middle East, Africa, and Latin America. Our factory in China holds ISO 9001 and each meter comes with a calibration certificate traceable to national standards. We support local distributors and end users with 5-day technical replies and spare parts availability. Not every supplier stocks DN200 meters for viscous oil, so we keep common sizes ready for 2-week dispatch. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will return a quote for the suitable oval gear or Coriolis meter with the correct process connection (flanged EN 1092-1 or ANSI 150).
FAQ
Q: What is the best flow meter for lubricating oil at DN200?
A: An oval gear positive displacement meter or a Coriolis mass flow meter. Both tolerate high viscosity and provide accurate totals for inventory transfer.
Q: Can I use a turbine meter for lubricating oil?
A: In most cases, no. Turbine meters lose accuracy when viscosity exceeds 10 cP. Lubricating oil typically ranges from 20 to over 200 cP, so a turbine meter reading will drift.
Q: Do you offer explosion-proof DN200 flow meters?
A: Yes. The OGM-DN200 and CMF-DN200 can be supplied with ATEX Ex d or Ex ia approvals for Zone 1. Mention your hazardous area requirement when requesting a quote.
Q: How do I set up a flow meter for bulk inventory transfer?
A: Install a strainer upstream, an air eliminator downstream, and connect the pulse output to a batch controller or PLC. Ensure the pipe runs full of liquid during measurement.
Q: What outputs do I need for inventory control?
A: Pulse output is standard for batching. 4-20 mA HART allows remote totalizing and diagnostics. For integration with SCADA or PLC systems, Modbus RTU is also common.
