Flow Meter PLC Integration Guide: Scaling Volumetric Inputs in Automation Control
Quick Answer: For PLC volume scaling, first check the flow meter output type. A 4-20 mA signal scales linearly against the configured measuring range. A pulse output scales against the K-factor in pulses per volume unit. Modbus and HART give direct engineering values and remove most scaling errors.
In practice, many engineers skip this check until a totalizer is wrong. We have seen this on water treatment sites, fuel skids, and food plants. This guide covers the four cases we handle most often with Silver Instruments flow meters.
Why PLC Scaling Errors Happen
Most volume reading errors come from a range mismatch. For example, a SIA-EMF electromagnetic flow meter may be set to 0 to 100 m3/h with a 4 to 20 mA output. If the PLC input card expects 0 to 20 mA, the zero offset is wrong. A DN80 meter at a water plant in Thailand read 18 percent high because the 4 mA offset was not trimmed. Another common mistake is entering the K-factor in the wrong time base. That error can make the volume total 60 times too high or too low.
Scaling a 4-20 mA Volumetric Input
Start with two numbers. The low range is usually 0 m3/h at 4 mA. The high range is the full scale value at 20 mA. Use this formula in the PLC function block. Flow equals ((raw mA minus 4) divided by 16) times (high range minus low range) plus low range. Most PLC platforms have a scale block for this. If the analog input card reports raw counts from 0 to 27648, first convert counts to mA. Then convert mA to flow.
For a SIA-EMF DN50 electromagnetic meter set to 0 to 40 L/s, 12 mA equals 20 L/s. If the loop current is 8 mA, the PLC must show 10 L/s. If the reading drifts, check the loop power supply and ground isolation. A signal isolator often fixes this.
Scaling Pulse Output Flow Meters

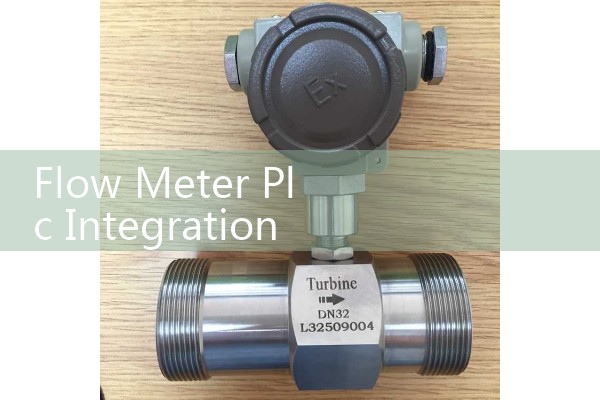

Oval gear meters and some turbine meters send a pulse per fixed volume. Check the K-factor on the meter tag. A Silver Instruments SIA-OG oval gear meter for diesel may have a K-factor of 52.1 pulses per litre. In the PLC, count pulses over a fixed time window. Then divide the pulse count by the K-factor. Some PLC input cards need a high speed counter. A standard digital input may miss pulses at high flow.
One fuel oil skid in Vietnam had a totalizer error near 50 percent. The integrator used a K-factor in pulses per minute but the PLC time window was in seconds. After correcting the time base, the totalizer matched the batch tank within 0.5 percent. For diesel and light fuel oil, this setup works well.
Using Modbus or HART Directly
Many Silver Instruments electromagnetic and Coriolis meters support RS485 Modbus. You can read the volume flow register as an engineering value. No analog scaling is needed. The PLC tag shows m3/h or L/s directly from the meter. This removes offset and span
The limitation is update time. Some Modbus networks update every 500 ms. That speed is too slow for tight batch control. In those cases, use the 4-20 mA or pulse output for fast control. Use Modbus for totalizer, diagnostics, and temperature readings.
Recommended Silver Instruments Models
For clean water and wastewater, use the SIA-EMF electromagnetic flow meter. Standard outputs are 4-20 mA, pulse, and RS485 Modbus. Accuracy is 0.5 percent of reading above 0.3 m/s. For diesel, fuel oil, and chemicals, use the SIA-OG oval gear flow meter. The pulse output is ideal for PLC totalizing. For steam and gas, use the SIA-VF vortex flow meter with pressure and temperature compensation. For mass flow in kg/h, use the SIA-CMF Coriolis meter. It outputs mass flow, density, and temperature over Modbus or HART.
Worked Example for a Water Utility
A water utility in the Philippines needs to totalize groundwater extraction. The pipe size is DN100. The flow range is 0 to 60 L/s. The PLC has a standard 4-20 mA input card. Set the SIA-EMF meter to 0 to 60 L/s at 4 to 20 mA. In the PLC, scale the raw input from 0 to 27648 counts to 4 to 20 mA. Then scale 4 to 20 mA to 0 to 60 L/s. At zero flow, the PLC must read 0.0 L/s. At 12 mA, the PLC must read 30 L/s. Then accumulate volume by integrating flow over time. Set the low flow cutoff to 0.05 L/s. This stops totalizing when the pipe is empty or at noise level.
FAQ
Question: Can I connect a flow meter directly to a PLC analog input?
Answer: Yes if the flow meter has an active 4-20 mA output. A loop powered meter needs a 24 V DC supply in the loop. Check the PLC input impedance and wire size.
Question: What K-factor do I enter for pulse scaling?
Answer: Use the K-factor on the meter calibration tag. Do not use a generic value from a manual. Silver Instruments oval gear meters have a specific K-factor on each tag.
Question: Should I use pulse or 4-20 mA for totalizing?
Answer: Pulse is better for totalizing because each pulse represents a fixed volume. A 4-20 mA signal is better for trend display and flow control loops.
Question: How do I avoid scaling drift on a 4-20 mA loop?
Answer: Use a signal isolator if the ground potential between the meter and PLC is unstable. Trim the zero and span in the PLC at least once per year.
Question: Can you preconfigure a flow meter for my PLC range?
Answer: Yes. Send us your pressure in bar, temperature in Celsius, pipe size DN, and flow range. We can set the span, pulse unit, and Modbus register map before shipping.
Contact Silver Instruments for PLC integration support and flow meter selection. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. Website: flow-meter.com.au. Tell us the PLC brand, input type, and flow range. We will supply the meter with the correct output scaling and K-factor.
